Novel design for biomolecule sensing and filter applications
• Photonics • Simulation • BiosensorSimulation
Goal : Design a biosensor with high sensitivity and
tolerance
Institute : IIT Delhi

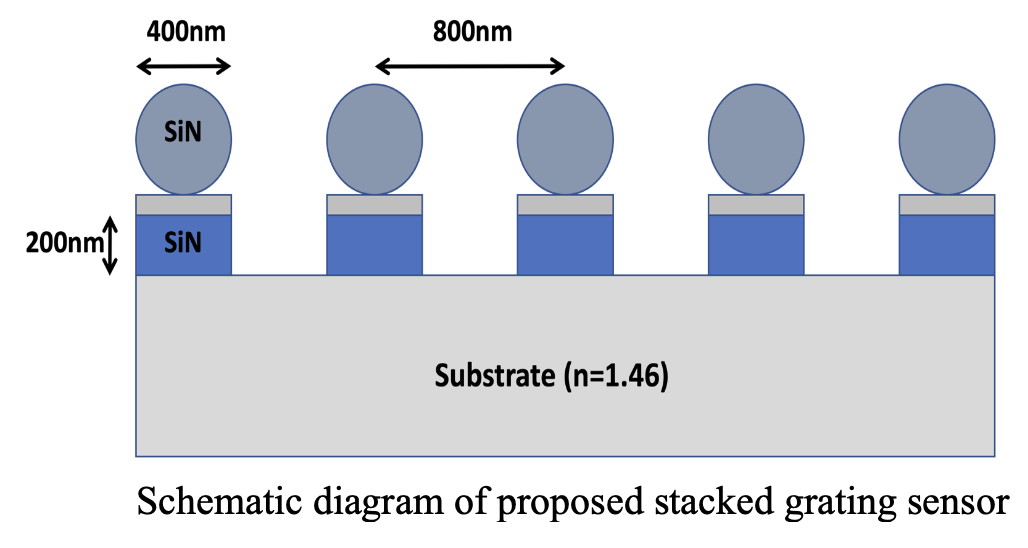

I developed a new design for sensor-based on Guided Mode
Resonance(GMR) effect with high sensitivity of 430nm/RIU and narrow
FWHM of 0.05nmthan conventional GMR sensor. With high sensitivity,
my proposed design finds application in detecting biomolecules
through refractive index sensing.

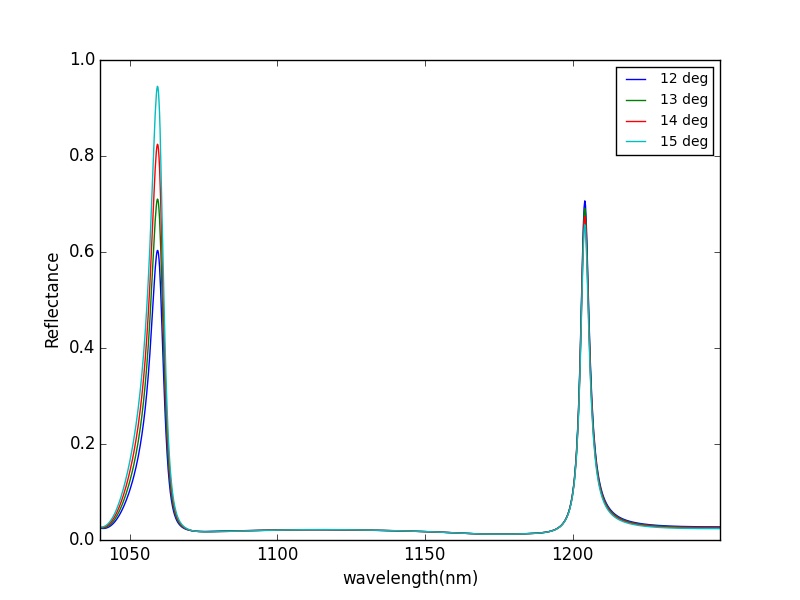

The following plot is the simulated angluar response for different
angles
